How to Hook Up Solar Panels to RV Batteries: Complete Step-by-Step Guide

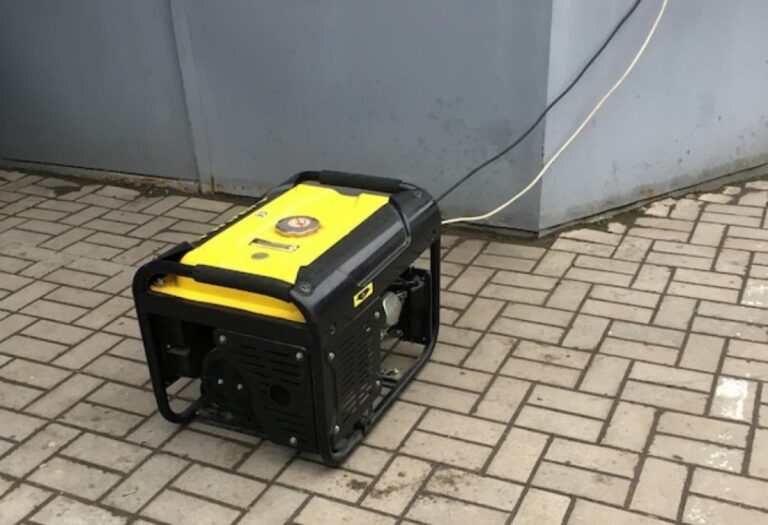

RV living gives you freedom—the ability to travel anywhere and stay connected to the comforts of home. But when you go off-grid, powering your RV becomes a challenge. Relying only on a generator can be noisy, costly, and inconvenient. That’s why more and more RV owners are turning to solar power.

Installing solar panels on your RV provides clean, renewable energy and gives you the ability to camp off-grid for days—or even weeks—without worrying about dead batteries. But here’s the real question: how do you hook up solar panels to RV batteries correctly?

This complete guide will take you step by step through everything you need to know, from understanding solar components to installation, safety, and troubleshooting. By the end, you’ll feel confident enough to power your RV with the sun.

Basics of RV Solar Power Systems

Before you start drilling holes or running wires, it’s important to understand how an RV solar system works.

1. Solar panels capture sunlight and turn it into DC (direct current) electricity.
2. That electricity flows into a charge controller, which regulates power and protects the batteries from overcharging.
3. The batteries store the energy so you can use it later.
4. If you need to run AC (household) appliances like a microwave, the energy goes through an inverter to convert DC into AC.

The charge controller is crucial. If you connect solar panels directly to your RV batteries, they can overcharge and get damaged.

Types of Solar Panels for RVs

There are several types of solar panels you can use on an RV, each with its own pros and cons.

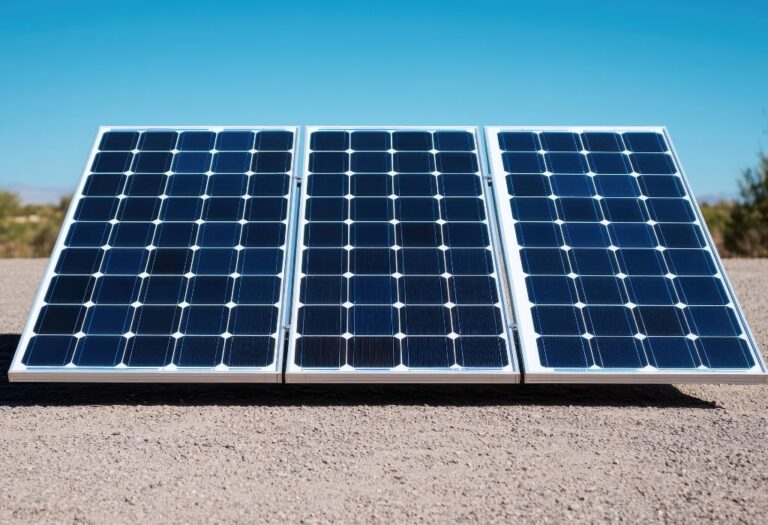

Monocrystalline Panels

1. Highest efficiency (15–22%).
2. Long lifespan, durable in harsh conditions.
3. More expensive but best for limited roof space.

Polycrystalline Panels

1. Slightly less efficient (13–16%).
2. Cheaper option, good for larger roof space.
3. Shorter lifespan compared to monocrystalline.

Flexible Panels

1. Lightweight and can bend to fit curved surfaces.
2. Easy to install with adhesives.
3. Less durable, more prone to damage over time.

Rigid Panels

1. Strong, efficient, long-lasting.
2. Need roof brackets and drilling.
3. Heavier than flexible panels.

Most RVers choose rigid monocrystalline panels for their durability and performance.

Choosing the Right RV Batteries

The solar panels are only one part of the system. Your batteries determine how much power you can store and how long you can stay off-grid.

Flooded Lead-Acid Batteries

1. Cheapest option but require regular maintenance.
2. Need to be topped off with distilled water.

AGM (Absorbed Glass Mat) Batteries

1. Sealed, maintenance-free, and more durable.
2. Better for RV owners who want “set it and forget it.”

Gel Batteries

1. Sealed and safe.
2. Lower power output compared to AGM.

Lithium-Ion Batteries

1. Lightweight, long lifespan (up to 10 years).
2. Fast charging and deep discharging.
3. Expensive, but best for serious RVers.

When sizing your battery bank, consider amp-hours (Ah). For example, a 200Ah battery can run twice as long as a 100Ah battery before needing a recharge.

Tools and Materials You’ll Need

Before you begin installation, gather the following:

1. Solar panels.
2. Charge controller (PWM or MPPT, with MPPT being more efficient).
3. RV batteries.
4. Inverter (optional, for AC appliances).
5. Wires (proper gauge based on system size).
6. MC4 connectors, fuses, breakers.
7. Mounting brackets or stands.
8. Tools: drill, screwdrivers, wire stripper, wrench, multimeter.
9. Safety gear: gloves and protective glasses.

Safety Tips Before Installation

Electricity is no joke. Keep these safety rules in mind:

1. Park your RV on a flat surface and turn off all power.
2. Wear gloves and safety glasses while working.
3. Double-check all polarity connections (positive to positive, negative to negative).
4. Install fuses between solar panels, charge controller, and batteries.
5. Use the correct wire gauge to prevent overheating.

Step-by-Step Guide: How to Hook Up Solar Panels to RV Batteries

Here’s the detailed process:

1. Mount the Solar Panels

1. Attach panels to your RV roof with mounting brackets.
2. Make sure they face the sun at the right angle.
3. For portable panels, place them on the ground in direct sunlight.

2. Connect Panels Together

1. Use MC4 connectors to wire panels in series or parallel.
2. Series increases voltage; parallel increases current.

3. Run Wires to Charge Controller

1. Route wires neatly and securely.
2. Use roof entry glands or cable pass-throughs to prevent leaks.

4. Install the Charge Controller

1. Mount it near the battery bank for short, efficient wire runs.
2. Ensure it has ventilation to avoid overheating.

5. Connect Charge Controller to Batteries

1. Positive to positive, negative to negative.
2. Tighten connections and check with a multimeter.

6. Add Fuses or Breakers

1. Install between solar panels, charge controller, and batteries.
2. This prevents fires or damage from electrical surges.

7. Test the System

1. Use a multimeter to confirm power flow.
2. Check charge controller display for voltage and charging status.

8. Connect an Inverter (Optional)

1. If you want to run household appliances, wire an inverter to the battery bank.

Series vs. Parallel Connections

How you connect panels affects performance:

Series Connection

1. Voltage adds up.
2. Works well for long wire runs.
3. If one panel is shaded, output drops significantly.

Parallel Connection

1. Voltage stays the same, current increases.
2. More reliable—if one panel is shaded, others keep working.
3. Better for RV 12V systems.

Most RV setups use parallel connections.

Using a Solar Charge Controller

The charge controller regulates voltage and current before it reaches your batteries.

1. Why You Need It: Prevents overcharging and battery damage.
2. PWM vs. MPPT:
   • PWM is cheaper but less efficient.
   • MPPT extracts more energy, especially in cloudy conditions.
3. Sizing the Controller: Match it to your solar panel output.

   • Example: 400W of solar on a 12V system requires at least a 30A controller.

Common Mistakes to Avoid

1. Connecting panels directly to batteries without a controller.

2. Using undersized wires that overheat.

3. Skipping fuses or breakers.

4. Mounting panels without sealing the roof properly.

5. Oversizing solar panels without upgrading batteries.

Maintenance & Troubleshooting

Keep your system running smoothly with regular care.

1. Clean panels every few weeks for maximum efficiency.

2. Inspect wires and connectors for corrosion.

3. Monitor charge controller readings regularly.

4. Recharge lead-acid batteries fully to prevent sulfation.

5. If not charging: check fuses, wires, or shading issues.

Frequently Asked Questions (FAQs)

1. How many solar panels do I need?

   • A weekend camper may need 200–400 watts. Full-time boondockers may need 600–1000 watts.

2. Can I run my RV air conditioner on solar?

   • Not usually. Air conditioners draw huge amounts of power. You’d need a massive solar and battery setup.

3. Do I need lithium batteries?

   • No, but they provide longer life and better performance.

4. Roof-mounted vs. portable panels?

   • Roof-mounted are convenient and always working. Portable panels let you park in shade while placing panels in sun.

5. How much does a solar system cost?

   • A basic setup starts around $500–$1000. Full-time off-grid systems can cost $3000–$6000.

Conclusion

Hooking up solar panels to your RV batteries isn’t as complicated as it seems. With the right tools, parts, and safety precautions, you can install a system that provides clean, reliable power for all your off-grid adventures.

Start small if you’re unsure—maybe a 100W panel to charge phones and lights. Over time, you can expand your system to power fridges, fans, and even entertainment systems.

With solar, you’ll enjoy the freedom of knowing your RV batteries are always charged—without the noise of a generator. The sun is free. Why not use it?
