How Many Volts Should an RV Battery Have? Answered

A quiet evening at the campsite can quickly turn stressful when the cabin lights begin to flicker.

The water pump slows, the fridge cycles erratically, and the voltmeter shows a number that raises concern.

These moments lead to one critical question: how many volts should a RV battery have to operate reliably.

Voltage matters because it not only determines whether lights stay bright but also whether appliances are protected from damage.

RV ownership continues to rise, with more than 11 million U.S. households owning an RV today (RVIA).

For these travelers, understanding battery voltage is the difference between comfort and unexpected breakdowns.

A healthy 12-volt lead-acid battery typically rests at about 12.6 volts when fully charged. By contrast, a 12-volt LiFePO4 battery rests higher, often around 13.3 to 13.6 volts (Victron Energy).

 Knowing these numbers helps avoid the costly mistake of thinking a half-charged battery is “full.”

Voltage readings also provide a simple way to gauge state of charge (SOC). For lead-acid, 12.2 volts is roughly 50%, while 11.9 volts signals near depletion. Running batteries too low shortens their lifespan and increases replacement costs.

With the right knowledge, RV owners can use a multimeter or battery monitor to spot issues early.

Proper charging settings and voltage awareness extend battery life and prevent frustrating failures on the road.

This guide breaks down the exact voltages RV batteries should show at rest, during charging, and under load.

 By the end, you’ll know the safe ranges for both lead-acid and lithium systems and how to measure them correctly.

Quick Answer: The Right Voltage for Common RV Batteries

RV batteries are usually 12-volt systems, but the actual voltage varies depending on the battery type and its state of charge. Knowing the right numbers helps determine whether a battery is healthy or in need of charging.

A fully charged 12V lead-acid battery should measure around 12.6 to 12.7 volts at rest. At 50% charge, it will drop to about 12.2 to 12.3 volts, and a reading near 11.9 volts signals it is nearly depleted.

A fully charged 12V LiFePO4 battery typically shows 13.3 to 13.6 volts at rest. Most lithium batteries use a built-in BMS that shuts the system down around 10 volts to prevent damage.

When charging, lead-acid batteries reach bulk and absorption stages at 14.2 to 14.6 volts, with a float voltage of 13.2 to 13.6 volts. LiFePO4 batteries usually require a bulk charge around 14.4 volts and do not need a traditional float stage.

These differences explain why measuring voltage is one of the simplest ways to answer the question: how many volts should a RV battery have.

What should a 12V RV battery read when full?
12.6–12.7 volts for lead-acid and 13.3–13.6 volts for LiFePO4 at rest.

What voltage equals 50% charge for lead-acid?
Around 12.2–12.3 volts.

What is normal while charging?
14.2–14.6 volts for lead-acid, about 14.4 volts for lithium.

Why does lithium rest at higher voltage?
The chemistry produces a flatter curve and higher resting voltage.

When does lithium shut off?
Most BMS systems cut power near 10 volts to protect the cells.

Battery Types in RVs: Flooded, AGM, Gel, and LiFePO4

RV batteries are not all the same, and voltage targets vary slightly between types. The most common are lead-acid in flooded, AGM, or gel designs, and modern LiFePO4.

Flooded lead-acid batteries are affordable but require maintenance and venting. AGM and gel types are sealed, maintenance-free, and often accept higher charge rates.

LiFePO4 batteries are the most advanced option, delivering higher usable capacity, faster charging, and a higher resting voltage. They also include a BMS to prevent over-discharge or overcharge.

Some RV setups use 6V golf-cart batteries wired in series to make 12V banks, while others parallel multiple 12V units for more capacity.

Are AGM and flooded voltages different at rest?
They are very similar, though charging setpoints may differ.

Is gel common in RVs?
Less common, but they require lower charge voltages to prevent damage.

Can LiFePO4 replace lead-acid directly?
Yes, if the charger can be set to 14.4 volts bulk and no float.

Why use 6V batteries?
They provide longer cycle life and higher durability when paired.

Do lithium batteries need venting?
No, LiFePO4 does not release gases like lead-acid batteries.

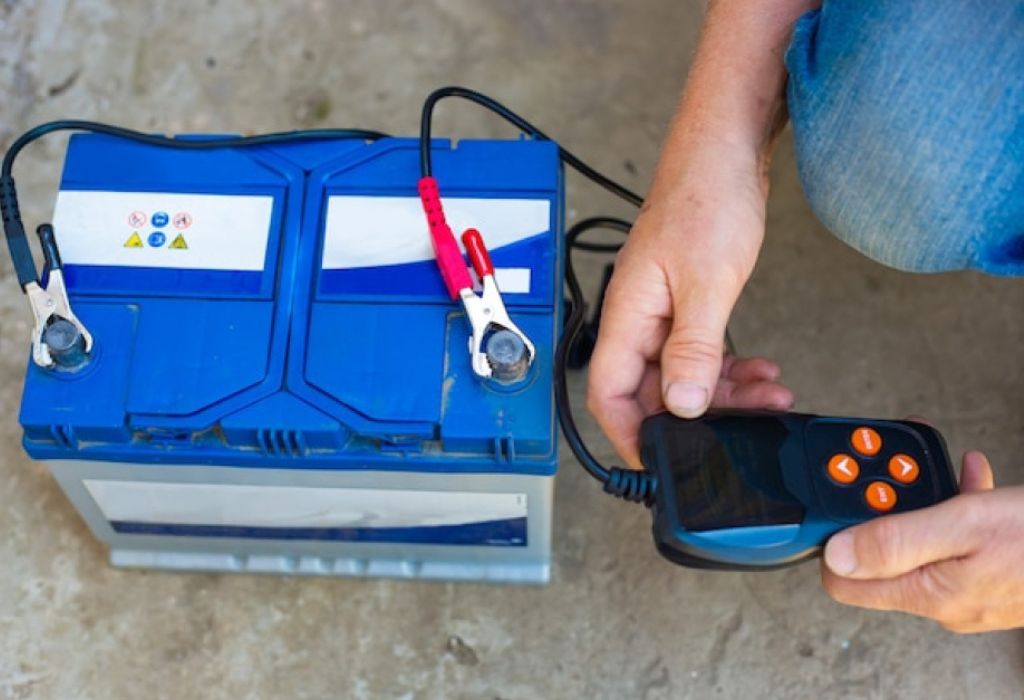

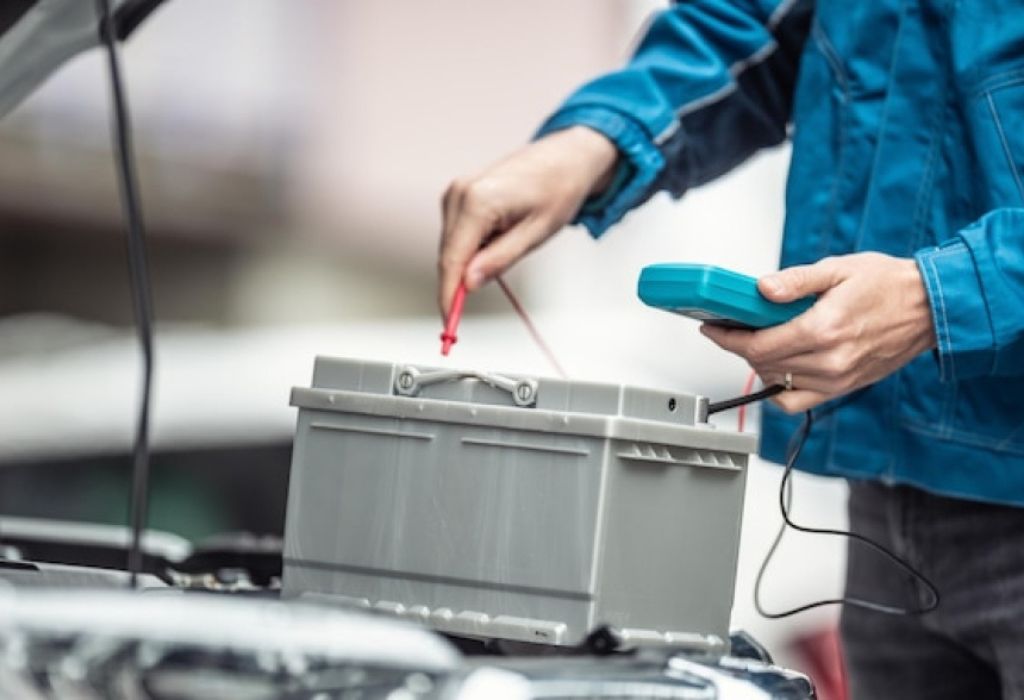

How to Measure RV Battery Voltage Correctly

A voltage reading is only accurate if taken the right way. The timing and method matter as much as the number itself.

The best practice is to measure open-circuit voltage after the battery has rested for 4–6 hours without charge or load. This gives a true reading of the state of charge.

Immediately after charging, the battery holds a surface charge that can show higher than actual voltage. Applying a short load or waiting several hours removes this false reading.

A basic multimeter works for simple checks, but a shunt-based battery monitor gives more reliable data. Shunts track amps in and out, calculating state of charge more precisely.

Can readings while charging be trusted for SOC?
No, voltage is inflated during charging. Use resting voltage or a shunt monitor.

How does temperature affect voltage?
Cold reduces apparent voltage; charts are based on 77°F (25°C).

Is a shunt monitor better than a voltmeter?
Yes, it provides continuous SOC tracking.

What is surface charge?
Extra voltage after charging that fades with time or a small load.

Do inverter displays show accurate voltage?
They are approximate; a multimeter or shunt is more precise.

State of Charge (SOC) by Voltage: Charts That Help

Voltage is the simplest way to estimate state of charge, especially for lead-acid. Lithium requires more careful monitoring since its curve is flatter.

For 12V lead-acid batteries:

• 12.7 V = 100%
• 12.4–12.6 V = 75%
• 12.2–12.3 V = 50%
• 11.8–12.1 V = 25%
• ≤11.7 V = depleted

For 12V LiFePO4 batteries:

• 13.3–13.6 V = 100%
• 13.0–13.2 V = ~80%
• 12.6–12.9 V = mid-range
• 12.0–12.5 V = low
• 10.0 V = BMS cut-off

Is 12.0 V half full?
No, on lead-acid it means nearly empty; on lithium it’s very low.

Why is lithium harder to measure by voltage?
Its SOC curve is flat, so voltage changes little in mid-range.

What voltage means lead-acid is 50%?
About 12.2–12.3 volts.

Is 11.7 V dangerous for lead-acid?
Yes, it risks permanent sulfation.

What voltage signals a full LiFePO4?
13.3–13.6 volts at rest.

Charging Voltages: Converter, Solar, and Alternator Settings

Correct charging is just as important as knowing resting voltage. Chargers must be set to the right voltage range for each chemistry.

Lead-acid batteries require bulk and absorption charging around 14.2 to 14.6 volts. Once full, they hold a float charge around 13.2 to 13.6 volts.

LiFePO4 batteries require a bulk charge around 14.4 volts. They do not need a float stage, though some chargers allow a low float around 13.4 to 13.6 volts.

Solar charge controllers and alternators should also be set correctly to avoid undercharging or overcharging. Incorrect settings shorten battery life.

Will floating lithium at 13.6 V hurt it?
It’s not needed; some brands allow it but most recommend no float.

What if the RV converter is fixed at 13.6 V?
It may never fully charge lithium, only maintain it.

Do AGMs need different settings?
Yes, some need 14.6 V bulk and 13.6 V float.

Is equalization required?
Only for flooded lead-acid, not lithium.

Can alternators overcharge lithium?
Yes, without a DC-DC charger, alternators may push unsafe current.

6-Volt vs 12-Volt Batteries: Series, Parallel, and System Options

Many RV setups use 6V golf cart batteries wired in series to form a 12V bank. Others use multiple 12V batteries in parallel to expand capacity.

Larger systems may use 24V or 48V banks for efficiency, then step down to 12V with converters for RV loads.

Each setup has pros and cons: 6V series pairs offer durability, 12V parallels provide flexibility, and higher voltages support larger inverters.

Is a 6V pair better than a single 12V?
Yes, for cycle life and durability in deep discharge.

Do 24V systems still power 12V lights?
Yes, with step-down converters.

Can lithium replace 6V banks?
Yes, but ensure charger compatibility.

Why do some RVs use 48V?
For large inverter loads and solar efficiency.

Is parallel wiring safe?
Yes, if cables are equal length and connections are solid.

Troubleshooting: Low, High, or Fluctuating Voltage

Unusual voltage readings point to specific problems. Understanding the numbers helps with quick fixes.

Low voltage at rest may mean old batteries, parasitic loads, or a failing converter. Always confirm with a resting test.

High voltage during charging may cause gassing in lead-acid or trigger BMS protection in lithium.

Fluctuations can be normal under load but should stabilize when devices are turned off.

Why does voltage sag under load?
Loads pull voltage down; resting voltage gives a clearer picture.

Is 15 volts dangerous?
Yes, unless equalizing lead-acid; lithium BMS will shut down first.

Why does my RV always show 13.6 V on shore power?
That is converter float, not a true SOC reading.

Lights dim at 12.0 V — is it empty?
Yes, lead-acid is nearly drained at that point.

Why does lithium shut off suddenly?
The BMS disconnects when voltage drops near 10 V.

Maintenance, Storage, and Longevity by Voltage

Proper storage keeps RV batteries healthy between trips. Voltage targets differ for lead-acid and lithium.

Lead-acid batteries should be stored fully charged and maintained at a float of 13.2 volts. If not floated, recharge when they drop to 12.4 volts.

LiFePO4 batteries should be stored around 50–80% SOC. Disconnect them from loads and do not keep them at float for long periods.

How often should batteries be checked in storage?
Monthly for lead-acid, less for lithium.

Is a trickle charger safe?
Use a smart charger with float, not a basic trickle.

Does solar help maintain batteries?
Yes, if the controller is programmed correctly.

Can lithium be stored in cold?
Yes, but do not charge them below freezing.

Do lead-acid batteries self-discharge faster?
Yes, and they need more frequent maintenance charging.

Future-Proofing: Smarter Monitors and Lithium Adoption

Battery monitoring is improving with new technology. Bluetooth shunts and app-based monitors give accurate SOC tracking.

Lithium adoption is accelerating due to higher efficiency and longer lifespan. Voltage knowledge still matters, but smart systems reduce guesswork.

Is voltage enough for lithium monitoring?
No, a shunt or BMS is more accurate.

Do smart chargers auto-adjust?
Some detect chemistry, but manual settings are safest.

Will RVs move to 24V or 48V systems?
Yes, larger solar and inverter systems are trending upward.

Is lithium worth the upgrade?
Yes, for those who need faster charging and deeper cycles.

Do BMS systems prevent mistakes?
Yes, but correct charger programming is still important.

Conclusion

So, how many volts should a RV battery have? The answer depends on chemistry and state of charge. Lead-acid rests at 12.6 volts full and is nearly empty at 12.0 volts, while lithium rests at 13.3–13.6 volts full and shuts down near 10 volts.

Charging correctly is just as critical: lead-acid thrives at 14.2–14.6 volts bulk with a float around 13.2–13.6 volts, while lithium prefers 14.4 volts bulk and little or no float.

By measuring voltage properly and adjusting chargers, RV owners extend battery life, prevent costly replacements, and enjoy stress-free travel. Next time lights dim, you’ll know exactly what the numbers mean.
