How Do I Know If My RV Battery Is Charging Properly?

A quiet campground turns tense when lights dim and the pump sputters, and doubts rush in. The trip hinges on a clear answer to how do i know if my rv battery is charging.

Dashboard bars can look fine even while loads hide problems. Confidence comes from quick, repeatable checks at the battery and on your charging gear.

Many modern RV converters target about 14.4 V in boost, 13.6 V in normal, and 13.2 V in storage, giving clear stage clues at the posts. These stage voltages create a simple pass or fail test when plugged into power. ProgressiveDyn+1

Trojan’s published settings list 14.4 V absorption and ~13.5 V float for 12-volt AGM, which are helpful benchmarks. Manufacturer targets beat generic charts for accuracy. trojanbattery.com

A second data point removes guesswork. A shunt-type battery monitor measures net amps to confirm whether energy is going into or out of the bank in real time. Victron Energy+1

One more number helps with resting checks. Lifeline documents 12.5 V open-circuit ≈ 75% state of charge for 12-volt AGM, which sets context for “full” readings after a rest. Lifeline Batteries

These facts turn a stressful mystery into a quick routine. The sections below show fast checks, exact voltage targets by chemistry, and fixes when readings say “charging” but lights still fade.

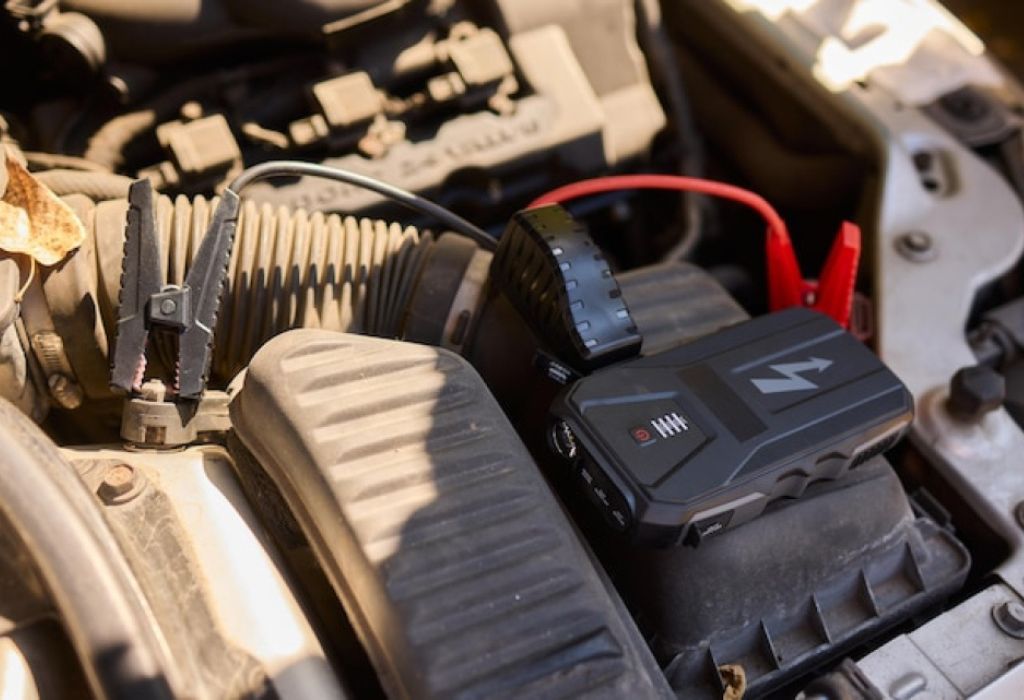

Fast Checks: How Do I Know If My RV Battery Is Charging?

Active charging means voltage at the battery rises above its resting value while a source is on. Confirm by measuring at the posts, not just at the panel.

On shore power, look for ~13.6–14.4 V at the battery depending on stage. Storage or maintenance mode commonly sits near ~13.2 V on many converters. ProgressiveDyn+1

What number proves it on shore power?
Seeing ~13.6–14.4 V at the posts usually confirms charging. ProgressiveDyn

Does 12.6–12.8 V confirm charging?
No, that is a typical full lead-acid at rest, not active charging. Lifeline Batteries

How can current confirm it quickly?
A shunt monitor shows positive amps into the bank while charging. Victron Energy

Where should probes go for accuracy?
Measure directly on the battery terminals to avoid voltage drop.

Can heavy loads hide a charge?
Yes, big draws can hold voltage down, so check net amps as well. Victron Energy

Charging Sources and Modes: What You Should See

RV batteries charge from three places. Shore power uses a converter or charger, the engine provides alternator charging, and solar supplies energy through a charge controller.

Each system uses stages such as bulk, absorption, and float, and these stages show up as predictable voltages. Smart gear makes those stages visible on screens and LEDs. ProgressiveDyn+1

How Do I Know If My RV Battery Is Charging on Shore Power?

A converter turns 120 V AC into regulated 12 V DC for loads and charging. Many models show 14.4 V boost, 13.6 V normal, and 13.2 V storage right on the unit or in the manual. ProgressiveDyn

If your posts mirror the converter’s stage, charge is flowing. If not, chase fuses and voltage drops between the power center and the bank. ProgressiveDyn

Is a converter the same as a smart charger?
Many RV converters include multi-stage charging and act like smart chargers. ProgressiveDyn

Why do some rigs show 13.6 V all day?
That is the common “normal” stage outside boost, and it still charges at a taper. ProgressiveDyn

Should fan noise convince anyone?
Treat it as a hint and verify with a meter at the posts.

What storage number is typical?
Around ~13.2 V is common for storage mode on many converters. gulfstreamcoach.com

How Do I Know If My RV Battery Is Charging While Driving?

Alternator charging should push battery voltage above resting within minutes of engine start. Long cables and simple isolators can limit current, and lithium banks often need a DC-DC charger.

A DC-DC unit controls voltage and current, protecting the alternator and finishing lithium charging correctly. Battle Born Batteries

How to verify alternator charging quickly?
Start the engine and confirm a rise above resting plus positive amps on the shunt. Victron Energy

Is an isolator enough for lithium?
Often not, and a DC-DC charger is recommended for correct profiles. Battle Born Batteries

Can alternator load be a concern?
A DC-DC charger limits current to protect the alternator. Battle Born Batteries

How Do I Know If My RV Battery Is Charging From Solar?

A PWM or MPPT controller shows stage information and present voltage. On sunny mid-day, many systems hit absorption levels consistent with your chemistry.

MPPT controllers harvest more power on larger arrays, while PWM is fine for small, simple setups. Victron Energy

What tells you solar is charging?
Controller shows bulk or absorption and battery voltage rises accordingly.

Is MPPT worth it?
MPPT is usually more efficient, particularly on larger arrays or colder days. Victron Energy

Should solar remain connected in storage?
Yes, with a proper controller and correct float settings for your battery.

Voltage Benchmarks That Prove It

Use targets published by manufacturers, not generic charts. Trojan lists 14.4 V absorption and ~13.5 V float for 12-volt AGM, and similar ranges for flooded models depending on temperature. trojanbattery.com

Lifeline documents 12.5 V open-circuit ≈ 75% SOC and recommends ~14.3–15.0 V absorption with ~13.3 V float at 25°C for 12-volt AGM. These references make resting and charging tests reliable. Lifeline Batteries

What resting voltage equals “full” on lead-acid?
About 12.6–12.8 V after a rest period depending on model and temperature. Lifeline Batteries

What absorption voltage is normal for flooded or AGM?
Around 14.4–14.8 V depending on brand and temperature compensation. trojanbattery.com

What signals a fully charged lithium at rest?
Many LiFePO₄ packs rest near ≥13.4 V when full and at rest. Battle Born Batteries

Do temperatures change targets?
Yes, follow maker tables for temperature-compensated voltages. Lifeline Batteries

Data callout: Lifeline’s manual states 12.5 V OCV ≈ 75% SOC for a 12-volt AGM and provides temperature-compensated charging voltages. This is useful when interpreting “resting” tests. Lifeline Batteries

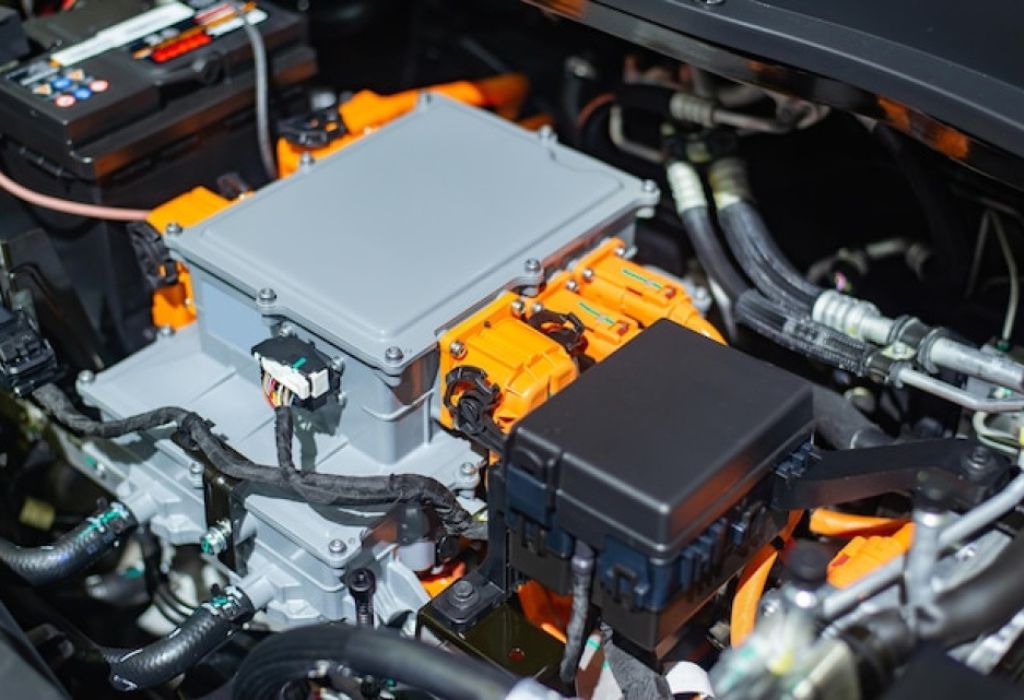

Tools That Make It Obvious

A digital multimeter confirms voltage at the posts. A clamp meter helps spot current direction on a single cable without disconnecting anything.

A shunt-based battery monitor provides the clearest answer by showing net amps and state-of-charge trends. Victron Energy+1

Which single upgrade helps most?
A shunt monitor because it shows amps in and out live. Victron Energy

Is a multimeter still needed?
Yes, to confirm actual voltage at the posts and at the converter.

When is a hydrometer useful?
For flooded cells to confirm charge and cell health by specific gravity.

Where else should voltage be checked?
Compare converter output to battery posts to spot wiring drops.

Why It May Not Be Charging and Fast Fixes

Blown fuses, corroded lugs, loose grounds, and profile mismatches top the list. Start with power-center fuses and the inline fuse near the battery, then verify at the posts. ProgressiveDyn

If numbers never rise, confirm the charger’s stage and chemistry setting. Lithium banks on old lead-acid profiles often need updated converter modes or a DC-DC charger from the alternator. ProgressiveDyn+1

Which fuses commonly stop charging?
Inline fuses at the battery and DC fuses in the power center are frequent culprits. ProgressiveDyn

Can a big inverter load mask charging?
Yes, heavy draws can hold voltage down while current still flows in.

Why won’t lithium charge on an older converter?
The profile may not reach correct lithium targets. Some models add a lithium mode around ~14.4–14.6 V. ProgressiveDyn

What if the converter runs but voltage is low at the bank?
Look for cable drop, corroded terminations, or a failing connection.

Chemistry-Specific Charging Tips

Battery chemistry sets the rules. Flooded, AGM, and LiFePO₄ behave differently and publish different targets.

Lead-Acid: Flooded and AGM

Flooded likes full charges and manufacturer-specified absorption times. AGM prefers correct absorption and float without over-voltage, plus temperature compensation. trojanbattery.com+1

For shelf storage planning, Trojan notes flooded self-discharge up to 15% per month at 25°C, while VRLA types such as AGM self-discharge under ~3% per month. This explains why stored flooded banks need maintenance charges more often. trojanbattery.com

Is equalization used here?
Equalization applies to flooded models when specified by the maker, not to AGM. rollsbattery.com

What float suits 12-volt AGM in many cases?
Trojan lists ~13.5 V float for 12-volt AGM at 25°C. trojanbattery.com

What absorption do flooded deep cycles often use?
Many list ~14.8 V at 25°C, adjusted for temperature. rollsbattery.com

How often should stored flooded batteries be recharged?
Expect periodic charges because of higher self-discharge. rollsbattery.com

Lithium Iron Phosphate (LiFePO₄)

Lithium prefers a controlled bulk and absorption near ~14.2–14.6 V for a 12-volt pack. Many manufacturers do not require a high float and rely on resting voltage and BMS management. Battle Born Batteries

Battle Born notes that a resting ≥13.4 V indicates a full LiFePO₄ pack, which is useful when checking after the charger stops. Battle Born Batteries

Is float required on LiFePO₄?
Often a low or no float is used because resting voltage holds higher naturally. Check your battery manual. Battle Born Batteries

Should alternator charging be limited?
Yes, a DC-DC charger protects the alternator and completes the charge correctly. Battle Born Batteries

What resting number suggests full?
≥13.4 V with no load typically signals a full LiFePO₄. Battle Born Batteries

A Pre-Trip Test Routine You Can Repeat

Step 1: Let the bank rest and note resting voltage. Step 2: Turn on a source like shore power or solar.

Step 3: Confirm the stage on the converter or controller and the target voltage. Step 4: Check net current on the shunt. Step 5: Recheck in 15–20 minutes to see a rise or taper. ProgressiveDyn+1

How soon should voltage rise on shore power?
Within minutes as the converter enters boost or normal stage. ProgressiveDyn

What is a quick alternator test?
Start the engine and confirm a rise above resting plus positive amps. Victron Energy

What is a simple solar test at midday?
Controller shows bulk or absorption and voltage near the stage target.

What resting value flags “not full” for AGM?
~12.5 V OCV ≈ 75% SOC, which suggests more charging is needed. Lifeline Batteries

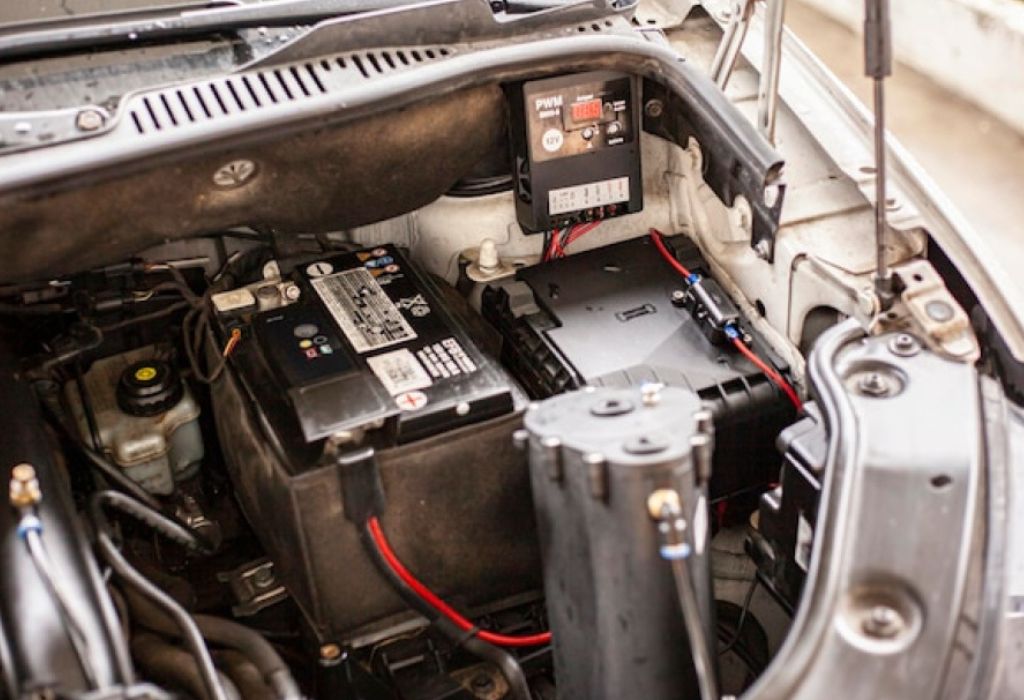

When to Upgrade for Certainty and Speed

Older single-stage converters can under-float or over-float certain chemistries. Upgrading to a multi-mode converter or a lithium-capable model shortens charge time and aligns voltages with battery specs. ProgressiveDyn

A shunt monitor such as Victron SmartShunt adds certainty during mixed solar, shore, and alternator use. The app shows real-time current and state of charge. Victron Energy

Will a smart converter charge faster from a generator?
Often yes, because optimized bulk current reduces runtime. ProgressiveDyn

Is DC-DC worth it with lithium and long runs?
Yes, it sets correct targets and protects the alternator. Battle Born Batteries

What monitor feature matters most?
A calibrated shunt that tracks bidirectional current and Ah. Victron Energy

Do you need Bluetooth or a panel display?
Either is fine if it keeps you checking volts, amps, and stages.

Safety and Battery Care While Charging

Use proper cable sizes, clean terminations, and solid grounds. Ventilate flooded batteries during charge and follow temperature-compensated voltages for lead-acid. rollsbattery.com

For storage planning, Trojan notes flooded self-discharge up to ~15% per month at 25°C, while VRLA like AGM are under ~3% per month at 25°C. These numbers explain maintenance charging intervals. trojanbattery.com

Can a fixed 13.6 V float shorten life?
Some chemistries prefer lower float in storage, so follow maker specs or a storage mode. ProgressiveDyn

Should flooded cells be ventilated during charge?
Yes, to disperse hydrogen safely.

Is cold-weather charging different?
Lead-acid needs temperature compensation, and lithium must follow low-temp rules in its manual. Lifeline Batteries

What accessory reduces guesswork the most?
A shunt monitor that shows net amps and stage behavior. Victron Energy

Conclusion

The fast path to certainty is simple. Measure at the posts, confirm the stage on your charging source, and watch net amps to answer how do i know if my rv battery is charging in minutes.

Adopt the pre-trip routine, log your numbers, and consider smart converter, DC-DC, and shunt upgrades to prevent surprises and extend battery life.
