How Do I Know If My RV Battery Is Bad? Signs to Check

Night settles over the campsite and the cabin lights fade, the water pump grumbles, and the slide stutters halfway.

Panic rises because tomorrow’s drive needs a sure start and the fridge cannot blink off again.

The multimeter shows a number that seems fine, yet devices keep acting starved and unreliable.

The real question forms fast: how do i know if my rv battery is bad before it strands the trip.

Voltage readings can mislead right after charging or discharging due to surface charge.

Accurate open-circuit checks require a rest period of at least four hours, and many manufacturers recommend 24 hours for lead-acid batteries.

A multimeter, a quick load test, and a careful look for sulfation, corrosion, or a weak converter or charger separate a tired battery from a healthy one.

This guide turns that process into a simple flow so the answer becomes clear before the next mile.

A fully charged 12-volt lead-acid battery typically rests around 12.7 to 12.8 volts, while about 50 percent state of charge is near 12.1 to 12.2 volts. Use chemistry-specific charts when possible for accuracy.

Common red flags appear before failure becomes trip-ending. Dim or flickering lights, slow jacks or slides, and control boards that reset under load point to low voltage or rising internal resistance.

Not every power problem is the battery by itself. A misconfigured converter, chronic undercharge, or parasitic draw can mask capacity loss and accelerate sulfation.

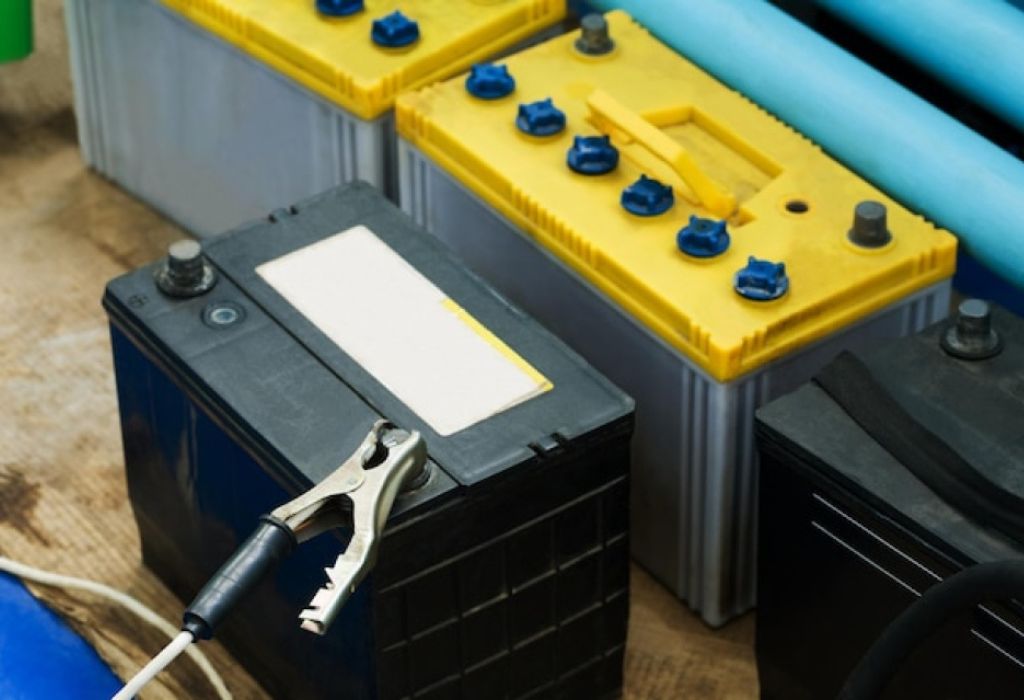

Battery Basics and Failure Modes: How do I know if my RV battery is bad?

RV house batteries are usually flooded lead-acid, AGM, or LiFePO4, and each fails in different ways. Lead-acid commonly loses capacity from sulfation when left partially charged, while lithium issues often relate to BMS protections or low-temperature charging.

Knowing the chemistry helps interpret symptoms and choose the right tests and charging profile. That keeps troubleshooting efficient and prevents avoidable damage.

What is sulfation in lead-acid batteries?
Crystal buildup on the plates from prolonged partial charge that reduces capacity and can become irreversible.

Can AGM batteries sulfate?
Yes, AGM is still lead-acid and can sulfate if undercharged or stored low.

Are lithium RV batteries immune to failure?
No, but failures often involve BMS cutoffs, cold-charge limits, or cell imbalance rather than sulfation.

Does chemistry change test methods?
Yes, flooded cells allow hydrometer testing, while sealed lead-acid and lithium rely on voltage, load tests, and BMS data.

Quick Clues and Visual Checks: How do I know if my RV battery is bad?

Symptoms like dim lights, slow slides, and electronics that reset under load suggest low voltage under stress. Visible issues such as swollen cases, leaks, or heavy terminal corrosion demand attention and often replacement.

Bulging or cracked cases are safety risks, and corroded terminals add resistance that mimics a weak battery during high loads. Replace damaged batteries and clean or repair connections before deeper testing.

Are flickering 12-volt lights a bad battery sign?
Yes, flicker under load often signals voltage sag from lost capacity or high resistance.

Is a swollen lead-acid battery safe to keep using?
No, stop using and replace it to minimize risk.

Can dirty terminals cause “fake” battery problems?
Yes, corrosion increases resistance and triggers voltage drop under load, so clean and tighten connections.

Do slow jacks or slides always mean the battery is bad?
Not always, since poor connections or a weak converter can look similar.

The Voltage Test: How do I know if my RV battery is bad by resting voltage

Measure open-circuit voltage after the battery rests off charge and loads. This reading estimates state of charge for lead-acid and offers a quick health snapshot.

Use a chemistry-specific chart, and remember that temperature and surface charge affect readings. Recheck after a brief load to bleed surface charge if needed.

How long should the battery rest before testing?
At least four hours, with 24 hours preferred for lead-acid accuracy.

Is 12.2 volts good?
It is roughly around 60 percent state of charge on many lead-acid charts, so recharge soon.

What voltage is considered empty for 12-volt lead-acid?
Around 10.5 volts is fully discharged, but avoid going that low to preserve life.

Do lithium SoC voltages match lead-acid tables?
No, LiFePO4 has a flatter curve and requires lithium-specific charts.

The Load Test: How do I know if my RV battery is bad under stress

A load test shows how the battery holds voltage with current flow. For 12-volt lead-acid, a common pass threshold is about 9.6 volts after 15 seconds at the specified load.

Many parts stores perform quick load tests, or you can use a carbon-pile or electronic load tester at home if comfortable with safety steps.

Why load test if the voltage looks fine at rest?
Voltage at rest can look normal even when internal resistance is high, so load reveals true capacity.

What voltage drop is concerning?
Sag below about 9.6 volts at the proper load suggests replacement for many lead-acid tests.

Can lithium be load tested the same way?
Use procedures and currents that respect the BMS limits and manufacturer specs.

No tester available today?
Many shops will test for you at no cost.

Converter, Alternator, and Solar: How do I know if my RV battery is bad or just undercharged

Smart RV converters charge in stages called bulk, absorption, and float, and proper stage voltages matter for reaching full charge. Typical lead-acid profiles are near 14.4 volts for bulk, 13.6 volts for absorption, and 13.2 volts for float.

Alternators may not bring deep-cycle house banks to 100 percent without a DC-DC charger, and mis-matched voltages can leave batteries chronically undercharged. Verify charge voltages and wiring to avoid chasing a “bad battery” that is simply not filled.

Why does the battery never reach 100 percent on shore power?
The converter may be holding a float-like voltage or sensing full too early for your chemistry.

Will the alternator fully charge house batteries while driving?
Often no, especially with larger banks or lithium without a proper DC-DC charger.

Is equalization needed?
Only on flooded lead-acid when the manufacturer recommends it to address stratification and light sulfation.

Do converters have set stage voltages?
Yes, check your converter’s guide for its bulk, absorption, and float levels.

Parasitic Draws and Overnight Holds: How do I know if my RV battery is bad or if something is draining it

A parasitic draw is current that flows with the RV off, and it can empty a good battery over time. Basic guidance for modern vehicles suggests 50 to 85 milliamps as typical, with higher values calling for investigation.

Use a digital multimeter in series and pull fuses one at a time to isolate the culprit, then repeat an overnight voltage-hold test after repairs. Commit to safe meter setup and let control modules sleep before measuring.

What is a normal parasitic draw range?
Roughly 50 to 85 milliamps is common guidance, but lower is better for storage.

How is the draw isolated?
Measure current in series, then pull DC fuses one by one and watch the reading.

Why does the voltage still fall with everything off?
High self-discharge or internal damage can cause drop even with no external load.

Can shore power hide the issue?
Yes, the converter can mask draws until you unplug and test again.

Specific Gravity and Smart Monitors: How do I know if my RV battery is bad at the cell level

Flooded lead-acid allows precise diagnosis using a temperature-compensated hydrometer to read electrolyte specific gravity by cell. This pinpoints weak cells that voltage alone cannot reveal.

For sealed lead-acid and lithium, use a shunt-based battery monitor and BMS data to track charge and trends over time. That history makes early decline obvious and guides replacement timing.

Why use a hydrometer?
Cell-by-cell readings show imbalance and confirm whether equalization is needed.

Can AGM or lithium be opened for SG tests?
No, rely on voltage, load tests, and BMS or smart-shunt data.

What SG pattern is a red flag?
Low SG after full charge or a spread greater than about 0.030 between cells warrants action.

Do monitors help with prevention?
Yes, trend lines reveal rising internal resistance and capacity loss before a trip fails.

Temperature and Storage: How do I know if my RV battery is bad in winter

Lead-acid should be stored fully charged to reduce sulfation risk, and periodic topping charge prevents damaging voltage drop. Cold slows chemical reactions and reduces available capacity.

LiFePO4 batteries should not be charged below freezing unless a heated pack or BMS protection keeps internal temperature within spec. Many systems block charging near the freezing point to prevent plating damage.

Can lithium be charged below 32°F?
Do not charge below freezing, and rely on heated batteries or warm-up strategies if needed.

Will the BMS help?
Yes, many BMS units prevent charging at low temperatures to protect cells.

How should lead-acid be stored off-season?
Store fully charged and maintain with appropriate float to avoid sulfation.

Does cold make a good battery look bad?
Yes, capacity falls in the cold, so test and charge at appropriate temperatures.

Replace or Recondition: How do I know if my RV battery is bad enough to retire

Consider replacement when repeated load tests fail, the battery cannot hold charge after a proper full charge, SG stays low across cells, or physical damage exists. Equalization can help flooded batteries with light sulfation, but it cannot fix severe damage.

Match new batteries in a bank for chemistry, capacity, and age, and evaluate lithium upgrades for cycle-life gains if budget allows. Check that the charger profile matches the new chemistry before installation.

Can desulfation devices recover a dead battery?
They may help with mild sulfation but cannot reverse plate shedding or structural failure.

Replace one battery in a multi-battery bank?
Replace in matched sets to keep balance and performance consistent.

How long do RV batteries last?
Lifespan varies by depth of discharge and charging accuracy, with lithium often lasting several thousand cycles.

What should be checked after installing new batteries?
Confirm charger settings, cable torque, ventilation, and that parasitic draws are normal.

Maintenance That Prevents “Bad Battery” Surprises: How do I know if my RV battery is bad before a trip

Keep the charge profile correct, clean and tighten terminals, and periodically verify stage voltages at the battery posts. Schedule checks so corrosion and loose lugs never have time to cause mysterious voltage drop.

For flooded cells, top off with distilled water when needed and equalize only per the maker’s guide. For lithium, follow manufacturer low-temperature and storage instructions and rely on BMS safeguards.

What everyday voltages should be expected from a smart converter?
Typical profiles hover near 14.4 volts bulk, 13.6 volts absorption, and 13.2 volts float for many lead-acid systems.

Do shallow cycles help lead-acid life?
Yes, avoiding deep discharges improves longevity.

Is leaving shore power connected safe?
Use a quality multi-stage converter that maintains proper float and avoids overcharge.

How often should flooded batteries be equalized?
Follow brand guidance, often periodic or when SG is low or cell spread is high.

Diagnostic Flow Checklist: How do I know if my RV battery is bad in minutes

Start with a rest and measure open-circuit voltage, then remove surface charge and recheck. Proceed to a load test, inspect for damage or corrosion, and verify converter and alternator charge voltages.

Isolate parasitic draws, confirm SG on flooded batteries, and decide on equalization, reconditioning, or replacement. Record readings and dates so trends expose issues early.

One tool to start with today?
A basic digital multimeter for DC volts and current.

Second tool to confirm capacity?
A proper load tester or a shop test at an auto parts store.

Extra tool for flooded cells?
A temperature-compensated hydrometer for SG checks.

What numbers should be logged?
Resting voltage, load-test voltage, SG by cell, and converter stage voltages.

Conclusion: How do I know if my RV battery is bad with confidence

Clear signs and three simple tests deliver a confident answer. Resting voltage, a controlled load test, and a charging-system check reveal whether replacement, repair, or routine maintenance is the right move.

Run the checklist before the next trip, fix parasitic draws, and set the charger profile for your chemistry. A healthy battery keeps the lights steady and the road ahead simple.
